Zimmerit Pz.VI Kingtiger "Henschel"

Kit #: JKT72003 Preview by Rob Haelterman

This set is meant to equip the Revell Tiger Ausf.B (better known as King Tiger) with Zimmerit.
Before I start discussing the parts, we need to look into the Revell kit itself and determine which version it represents.
King Tiger production started in January 1944. The first 50 were produced with (what is known as) the "Porsche turret". In June 1944 the "Henschel turret" became available.
During production of the "Henschel turreted" versions, some changes were made. In bold below the features of the Revell kit. As you can see, it kit corresponds best to a September 1944 version. September 1944 is the month that Zimmerit was dropped from the production requirement and, as a result, the Revell kit doesn't require Zimmerit.

Month / Version Track / sprocket Spare tracks on turret Loader's hatch Rear hatch Zimmerit Cover on engine deck for deep wading vent. Mesh for front engine vents Front fenders Jack on rear plate AA Mount U-shaped rain guard for optics in front of turret
Jun 44
Double, connecting link in one part/ 9 teeth (Possible not fully implemented before July 1944) No (unless retrofitted) 15mm (only for first tanks produced) Standard Yes Available (mesh)
Standard   Yes Circular ring No
Jul 44 Double, connecting link in one part/ 9 teeth (Possible not fully implemented before July 1944)  Yes 40mm Standard Yes Available (mesh) Standard   Yes Circular ring No
Aug 44

Double, connecting link in one part/ 9 teeth

Bolts offset from teeth on drive sprocket

Yes 40mm Standard Yes Available (mesh)
Raised and longer (going underneath turret)   Yes Circular ring No
Sep 44

Double, connecting link in one part/ 9 teeth

Bolts offset from teeth on drive sprocket

Yes 40mm Standard No Armored Raised and longer (going underneath turret)   Yes Circular ring Some
Oct 44

Double, connecting link in one part/ 9 teeth

Bolts offset from teeth on drive sprocket

Yes 40mm Standard No Armored Raised and longer (going underneath turret)   No Circular ring Some
Nov 44

Double, connecting link in one part/ 9 teeth

Bolts offset from teeth on drive sprocket

Yes / Backfit 40mm Standard No Armored Raised and longer (going underneath turret)   No Circular ring Some
Jan 45

Double, connecting link in one part/ 9 teeth

Bolts offset from teeth on drive sprocket

Yes / Backfit 40mm Standard No Armored Raised and longer (going underneath turret);
some armored
  No Circular ring Yes
March 45 Single link / 18 teeth (different drive sprocket) Modified for new tracks; 6 per turret side 40mm Bevelled top edges and smaller hinge covers No Armored Raised and longer (going underneath turret);
some armored
Reinforced with vertical ribs No (brackets for wooden block also dropped) Circular ring / post Yes

As can be seen from the table, it would not be difficult to backdate the kit to an earlier version that does require Zimmerit. An August 1944 version would only need a small modification to the engine deck and the actual Zimmerit.

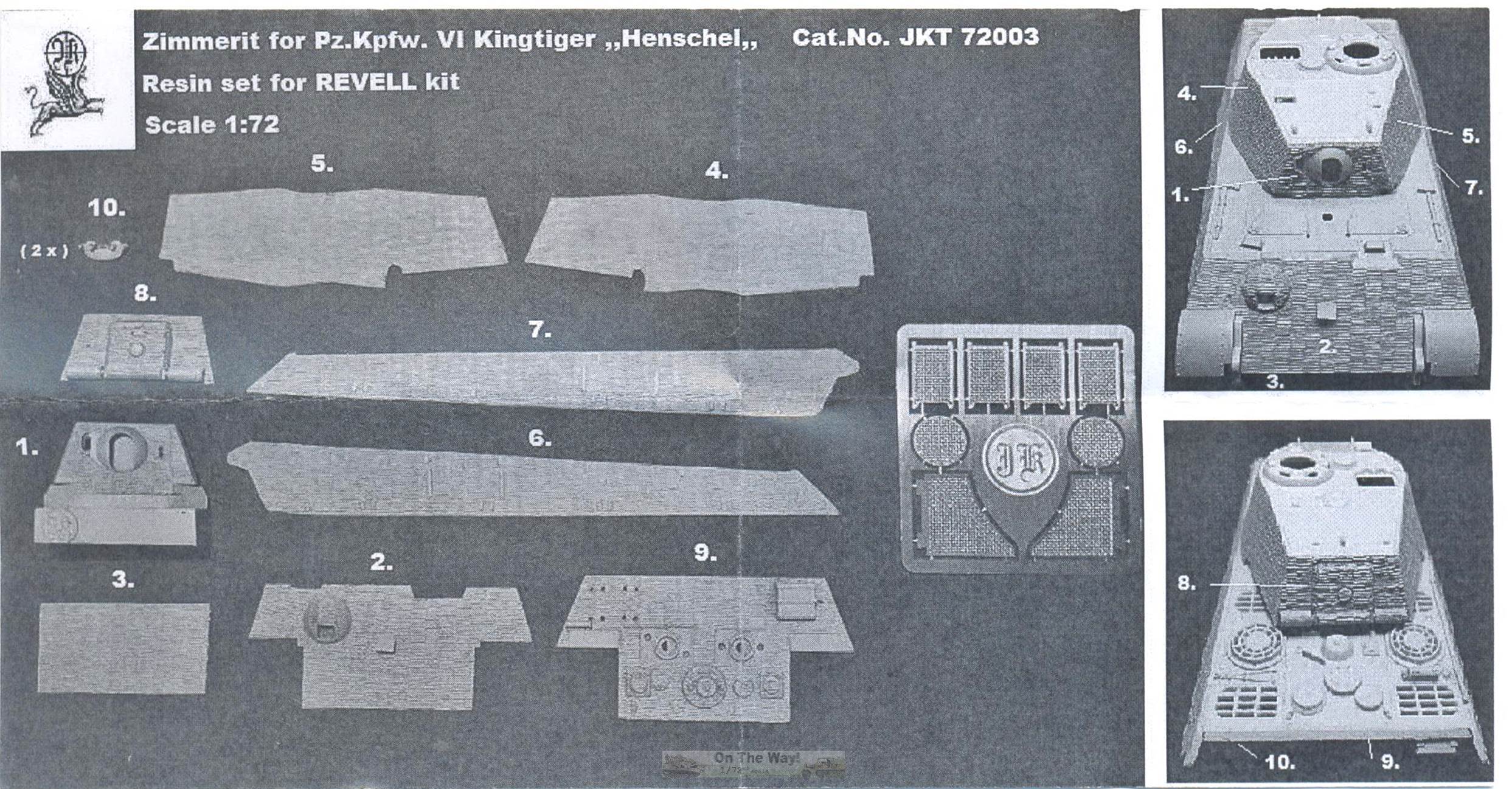

The set contains all the usual suspects:

  • resin Zimmerit for the upper and lower glacis,
  • for the hull and turret sides,
  • hull rear and for the
  • turret front and turret rear.

Of these, only the hull rear is a replacement part, all others are in the wafer thin Zimmerit that JK Resin also offers as separate sheets, and thus needs to be glued to the kit parts.

Also provided are parts that are not specifically aimed at Zimmeritting the kit, but more meant as an update:

  • two resin C-hooks, which are needed, because these are cast integrally on the Revell rear hull part that needs replacing;

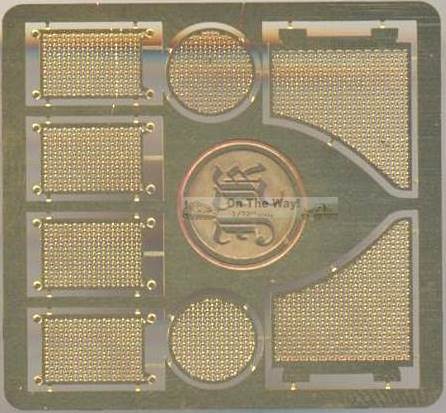

  • PE engine meshes.

Regarding the latter, and remembering that we would need to (slightly) backdate the kit to ensure that it requires Zimmerit, it would have actually been a good idea if the PE sheet also contained a small mesh for the deep wading vent on the rear of the engine deck.

Dry fitting the parts on the Revell kit, we see that the

  • parts for hull sides are about a millimeter too long. Detail for the Schürzen attachments are provided (which the base kit lacks), meaning that it will be easier to build the kit with (parts of) the Schürzen removed;
  • the glacis parts are spot on and already contain the ball mount;
  • the turret sides are half a millimeter too long;
  • the turret mantlet fits perfectly, as does the turret rear;
  • the rear hull fits perfectly and has better detail than the original part (jack block, rear convoy light);
  • the engine meshes fit perfectly, but are not mentioned in the instruction leaflet.



As all the parts are cast to the usual JK Resin standards, this is a set that can be recommended, but would gain even more by the addition of just one tiny extra PE mesh.
