of the VK4502(P)
This vehicle has never really existed and was only a drawing-board
Porsche and Henschel were once again in competition on this project.
Porsche offered two versions of its prototype VK 4502(P), one with
a turret at the front as the Tiger(P), the Type 180, the other with
a rear turret, the Type 181. The turret was developed by Wegmann.
Both versions retained the electric transmission developed by Porsche.
Very confident in himself and in its success, Porsche immediately
began to build a batch of 50 turrets. This was hardly prudent in view
of the harsh realities of war with respect to the supply of raw materials.
Indeed, Germany at that time was already cut off from everything and
shortages were frequent. Copper needed for any electrical equipment
did not escape that reality, making it impossible to mass produce
the Porsche design.
The kit is packaged in a strong cardboard box (20x13x6 cm). There
is no instruction sheet; the only reference is the color picture on

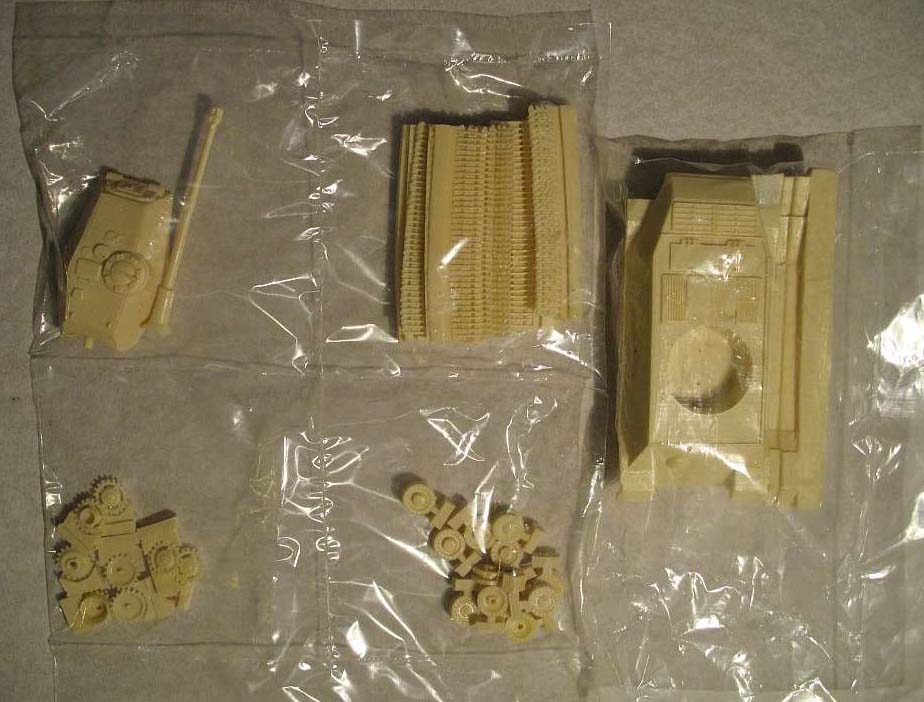

The kit is cast in a hard yellow resin and contains 34 parts. The
parts are separately packaged in sealed plastic bags. The casting
of the turret and hull is without air bubbles. Tracks are poorly cast,
have some small air bubbles and are easily broken.
The kit is available by the manufacturer www.7starhobby.com
and from time to time also on E-Bay.
A distributor is unknown. The master is made by Zhenmin Han.
The lower hull, gun, tracks, wheel
units and springs are based on the 1/72 Trumpeter Elephant kit (or
possibly the Dragon kit).
The rest of the kit and details are built from scratch by 7Star.
(source German Tanks of World War II – F.M. von Senger und Etterlin)

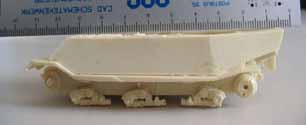

|Top hull to ground
Note that the height of the hull itself
ought to be around 19mm.
The kit pretends to be a copy of the VK4502(P) with the rear turret.

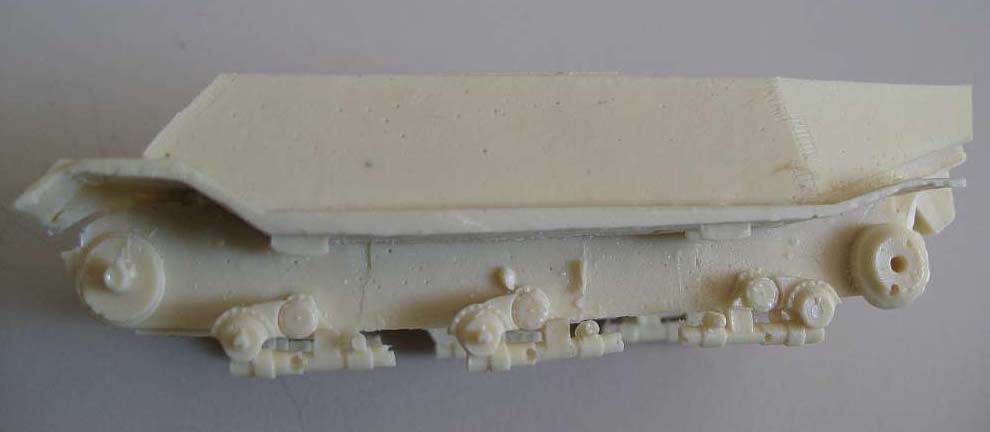

But we can speak more about a “lookalike” kit. The hull
is a disaster. It is too high (around 22.5mm while it actually must
be around 19mm), warped and damaged. The layout of the rear is absolutely
wrong. The model has the rear from the Elephant/Ferdinand and not
the layout of the VK4502. The front angle is around 43 degrees while
it must be around 35 degrees.
The hull is around 3.5 mm too long.
As a result the overhang of the rear is too big in comparison with
the length of the track units.
This seems extraordinary to me. The
master maker Zhenmin Han has shown me pictures of the VK4502 with
a correct rear layout and with correct length of track units. (See
It seems to me that the master which is used for this kit is different
from the VK4502 pictures I received (and different from the vehicle
pictured on the box).

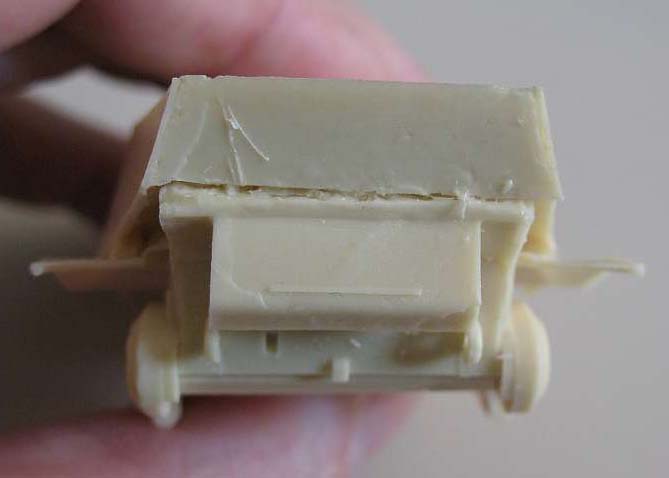

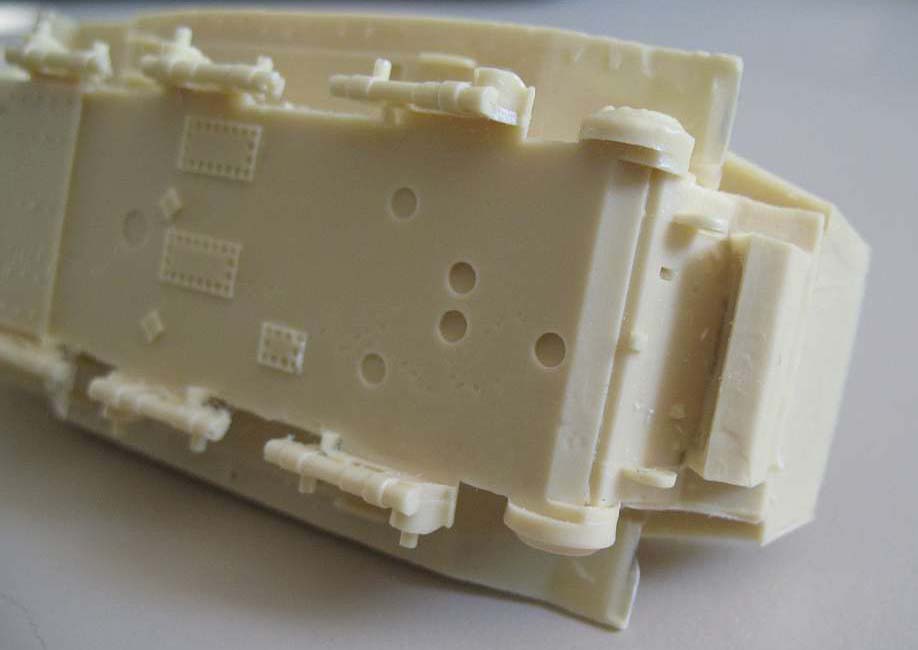

Another and bigger mistake is that
the master, possibly due to earlier mould makings is damaged and was
used to made new moulds without repair. As a result the cast hull
has many problems which are difficult to correct. In fact, the hull
is not usable and you have to rebuild the hull completely to make
it a correct one.
The other parts as turret, barrel and wheels are acceptably casted,
but the tracks are poor and are broken quickly.
Building the kit
In first instance it looks as if it is impossible to build a correct
kit with the provided parts.

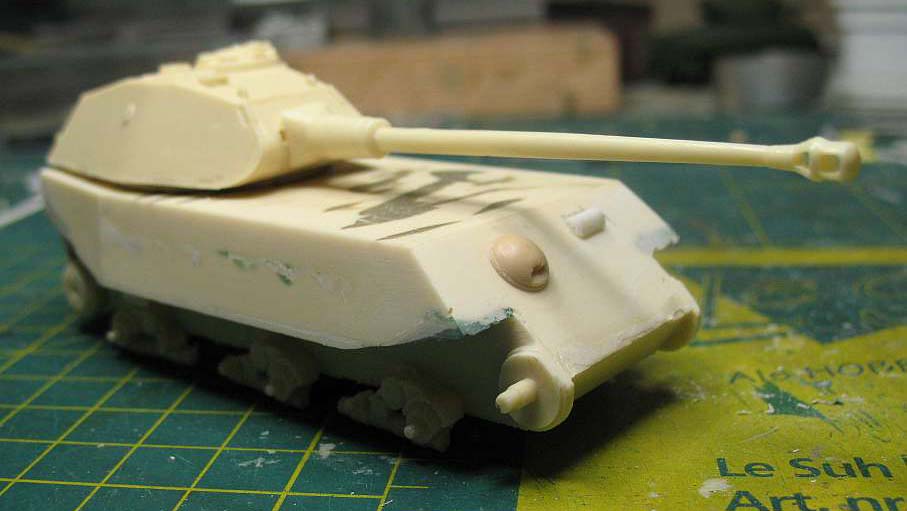

Rebuilding the kit

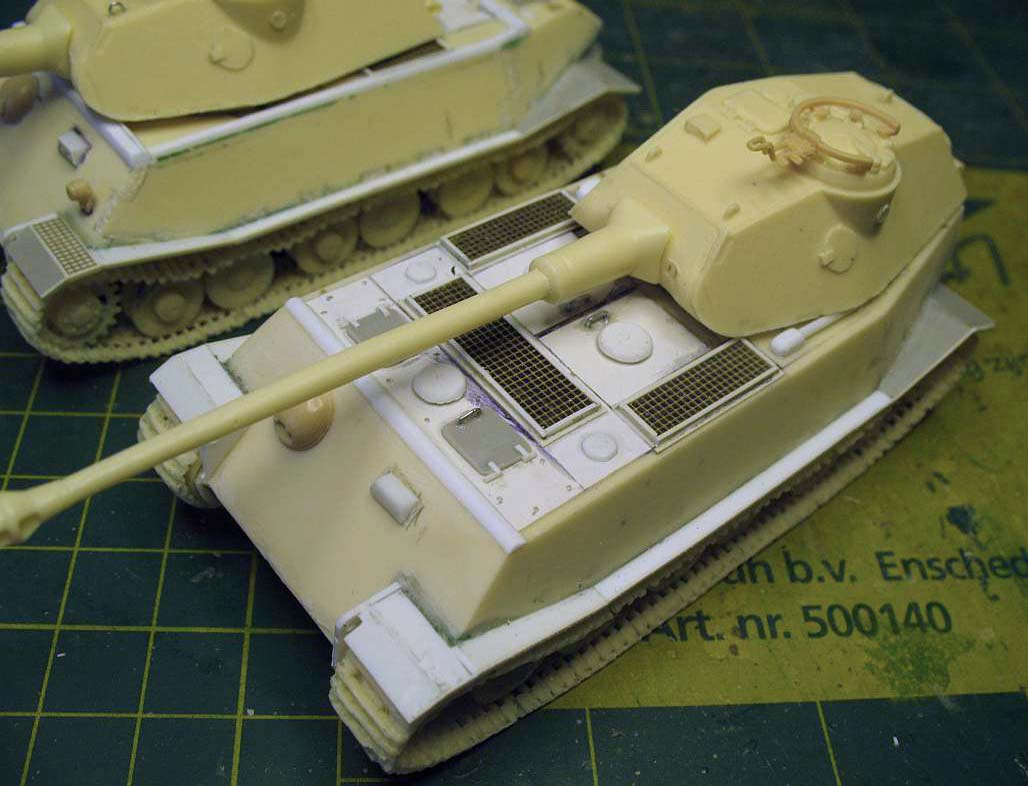

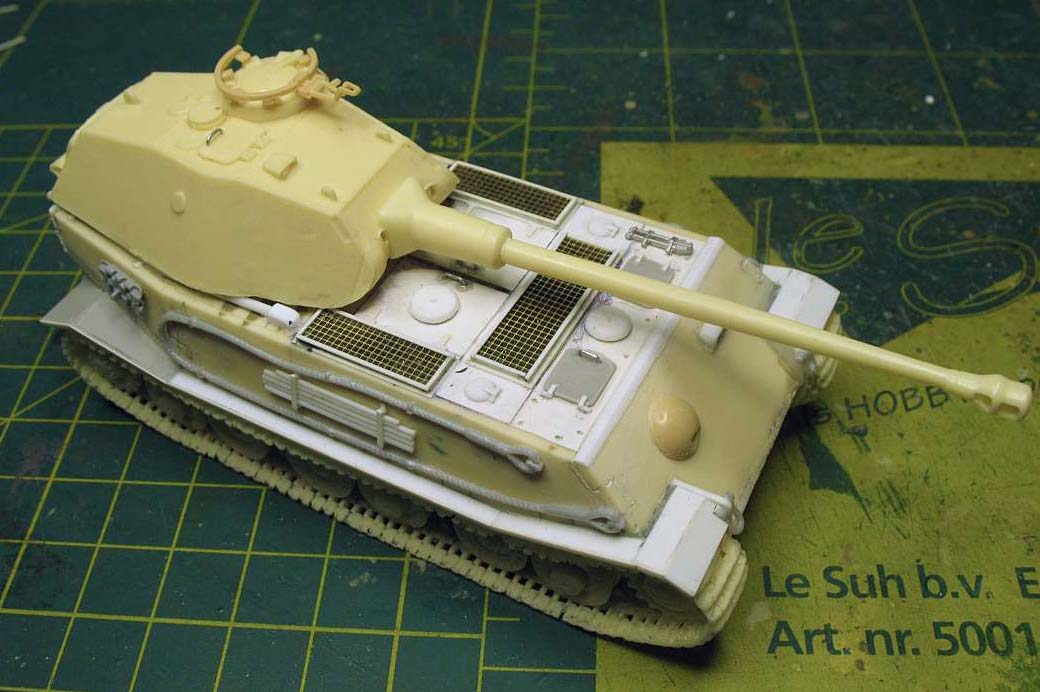

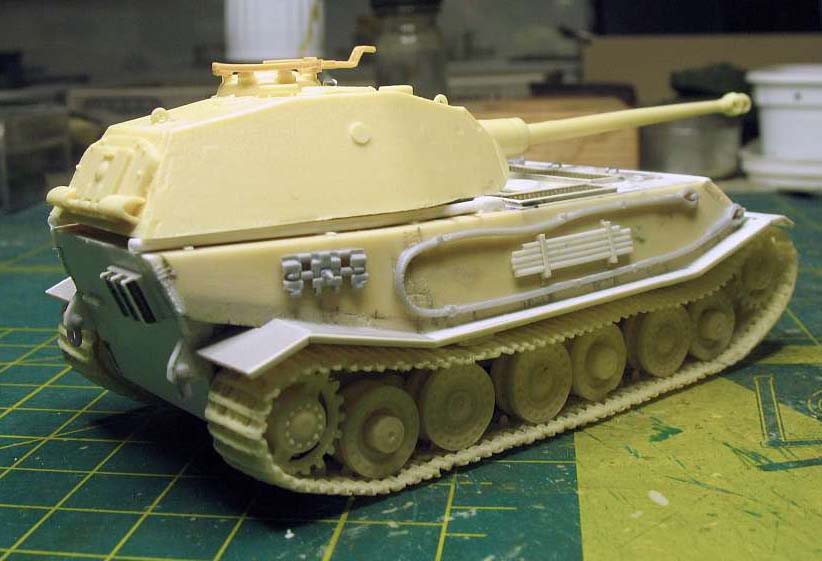

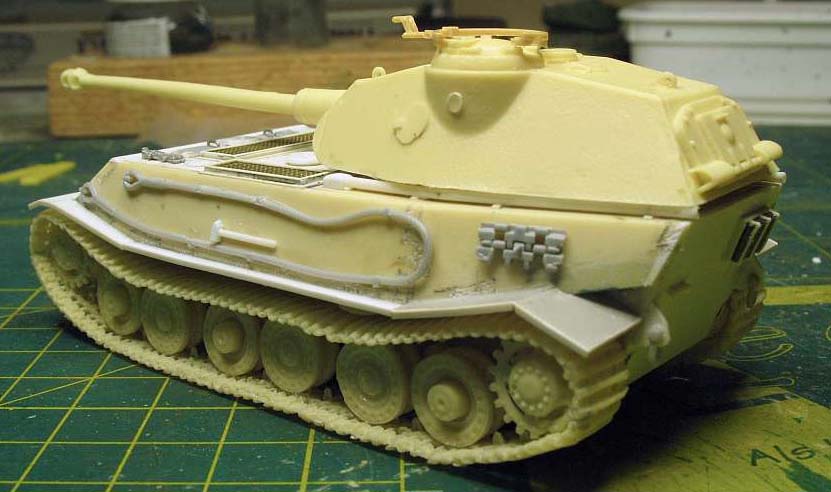

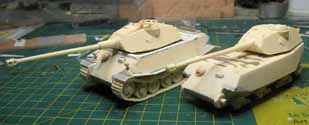

To show that it is possible, I have reworked and rebuilt the kit to
an acceptable and more correct model. I started by lowering the hull
from the top by around 3.5mm. Then I reshaped the front angle and
rebuilt a correct rear. I also rebuilt all details on the model as
engine deck etc.
I also added some tools as towing cables and other tools, which are
not included in the kit.

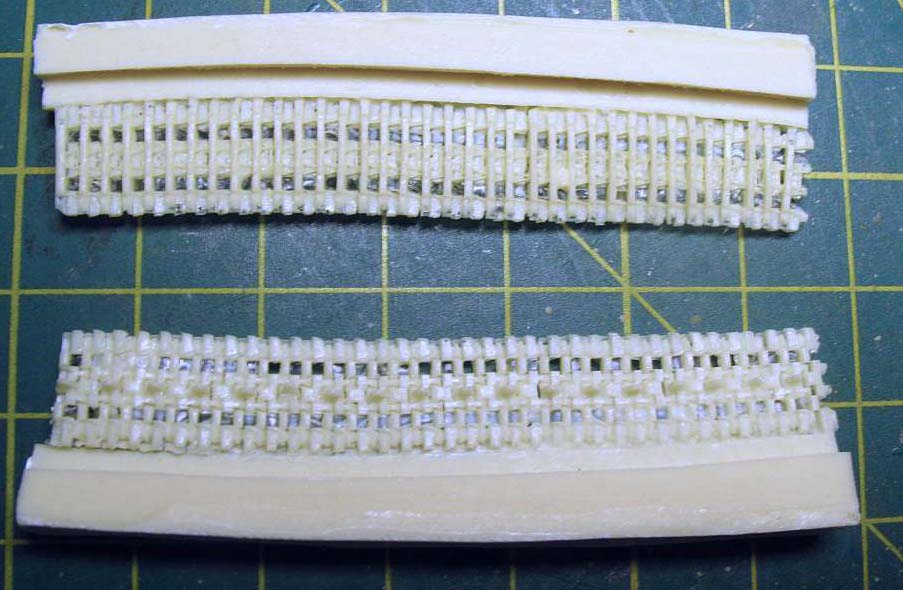

Working with the tracks was hard. The tracks were a little crudely
casted and had small air bubbles. The resin was a hard quality. It
was necessary to heat the tracks to a high temperature with a hairdryer,
but the tracks broke quickly nevertheless.
I hope that other hulls for this kit are correct. In the kit I have
received the hull is not acceptable.
Note: The hull in kit 72001
(VK4502(P) model with front turret) has the same problems.
Advice to 7StarHobby –
Check if the master of the mould is correct before using it to construct
Customers pay money for a model and expect a correct kit. If the master
is broken or damaged by making earlier moulds, repair or rebuild the
master correctly and control the quality of the parts after casting.
Don’t use damaged parts for new moulds; that’s just not
Thanks to 7Starhobby – 5Mhobby for the review sample.
Note: 5MHobby has informed me that
they plan to correct and rebuild the hull to a correct one for which
I sent them the necessary information.
