Germany Rheintochter 1 Missile Launching Position

Kit #: UA72072 Preview by - Al Magnus

Rheintochter was one of a number of guided surface-to-air missiles under development in Germany during World War Two. Started in late 1942 by the German Army (Heer), by August 1943, some 82 test firings were made. The operational version was intended to be fired from a ramp or converted 8.8cm Flak 41 gun mount. Unfortunately performance was not up to spec and the project was cancelled in February 1945 in favour of competitor's rockets.

The Kit

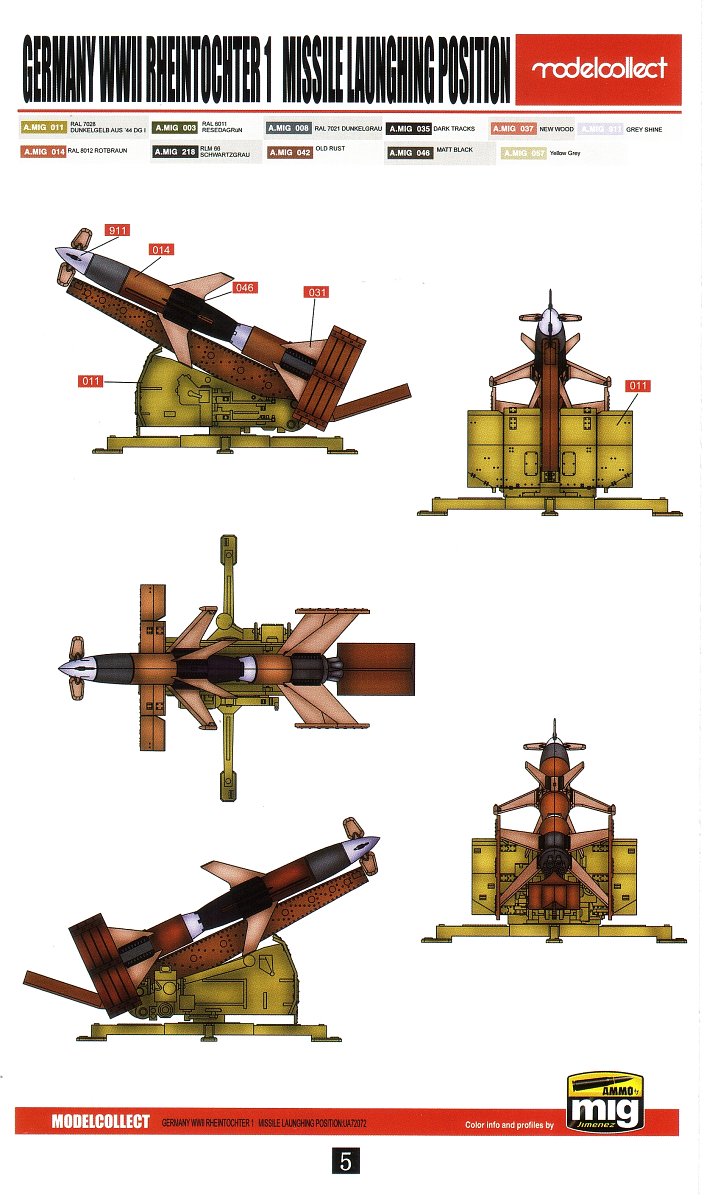

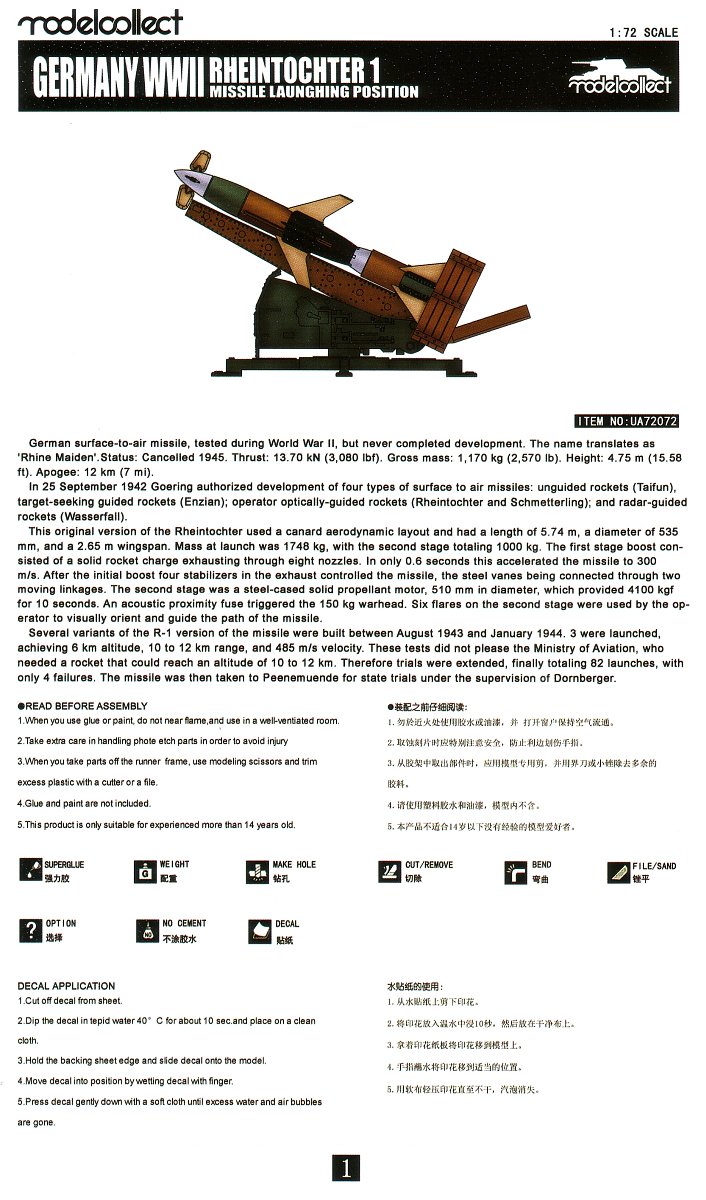

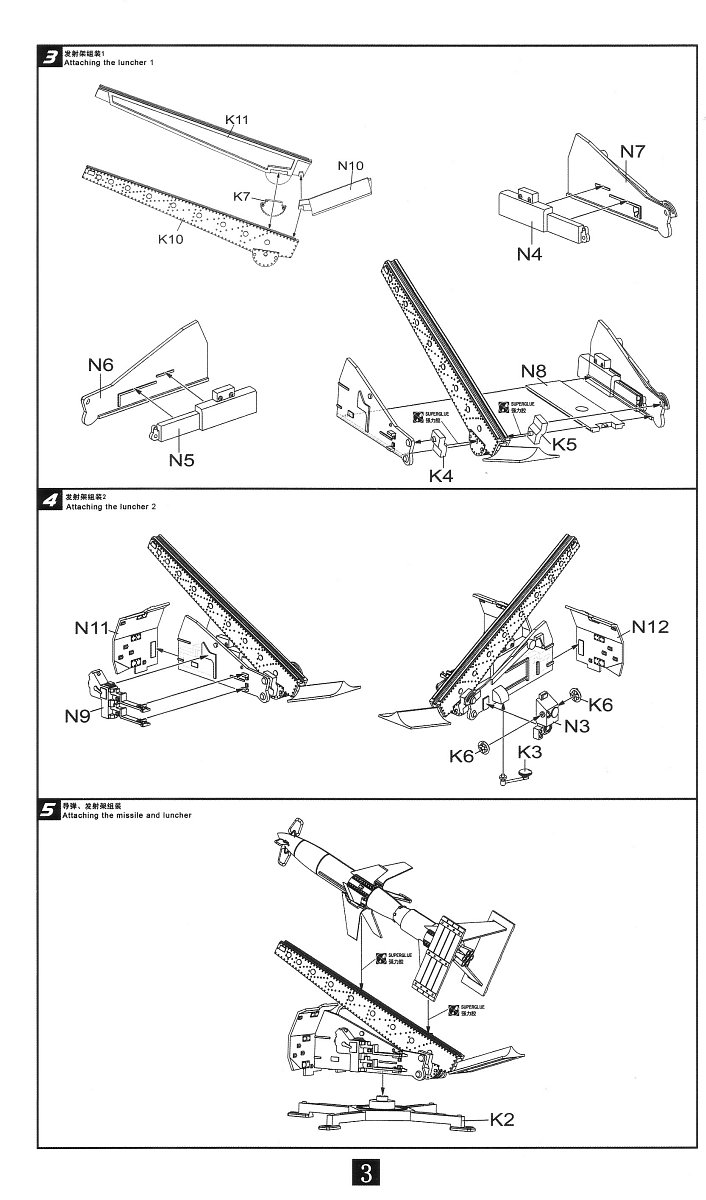

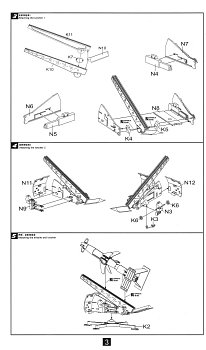

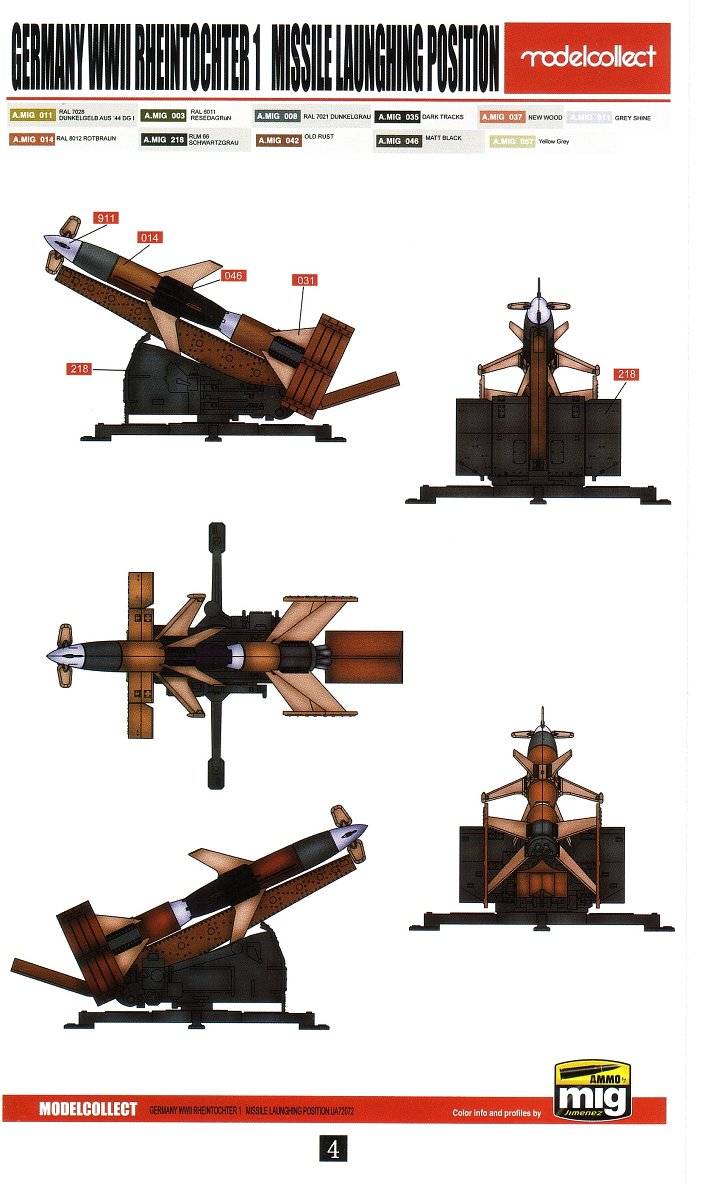

Model Collect has been releasing, as well as announcing, forthcoming releases of some interesting kits of late. Among them is this kit of the Rheintochter R1 SAM. The box top states this is a 1+1 kit, so you get two missiles and their respective launchers. There are 4 sprues, 2 each for the missiles (sprue K with 33 pieces) and two each for the Flak 41 mounts (sprue N with 13 pieces). No decals or photo-etch are included. Build instructions cover 5 steps. There are two pages of artwork with two different colouring options, though in reality there is only a single colouring suggestion for the missile (for prototype missiles) with two alternate colourings, either panzer grey or yellow, for the launcher. Paint call outs are for Ammo of Mig paints.

Molding is excellent with next to zero flash and no low spots. There are some ejector pin marks, most seem to be located on inner surfaces of the Flak 41 launcher, so they should be inconspicuous once the parts are assembled. Detail is crisp. The larger parts have no alignment pins so care will be needed to join pieces and avoid steps or large seams.

Some observations:

  1. The 8.8cm Flak 41 launcher is much too simplified. To start with, the carriage levelling pads are moulded directly to the underside of the legs. Then there is a complete lack of hooks and their supports for hanging the mount on a trailer, and the legs lack hinges for folding backward for towing. It also appears that some of the operator positions are missing their seats and hand wheels.

    Addendum 1: Al Magnus 2023/Oct/18
    Outside of a decent launch rail, Model Collect's missile's launch platform is a complete fabrication. While the kit's mount is square shaped with 4 fixed arms at the corners, the real mount is closer to that of a kite shape, with two fixed legs plus two fold-able legs for travelling. The difference is apparent in the photos below, the left one being the correct shape as found in the Bronco 1/35 scale kit, whereas the right photo shows the Model Collect version.

    Bronco 1/35 mount

    Model Collect 1/72 mount

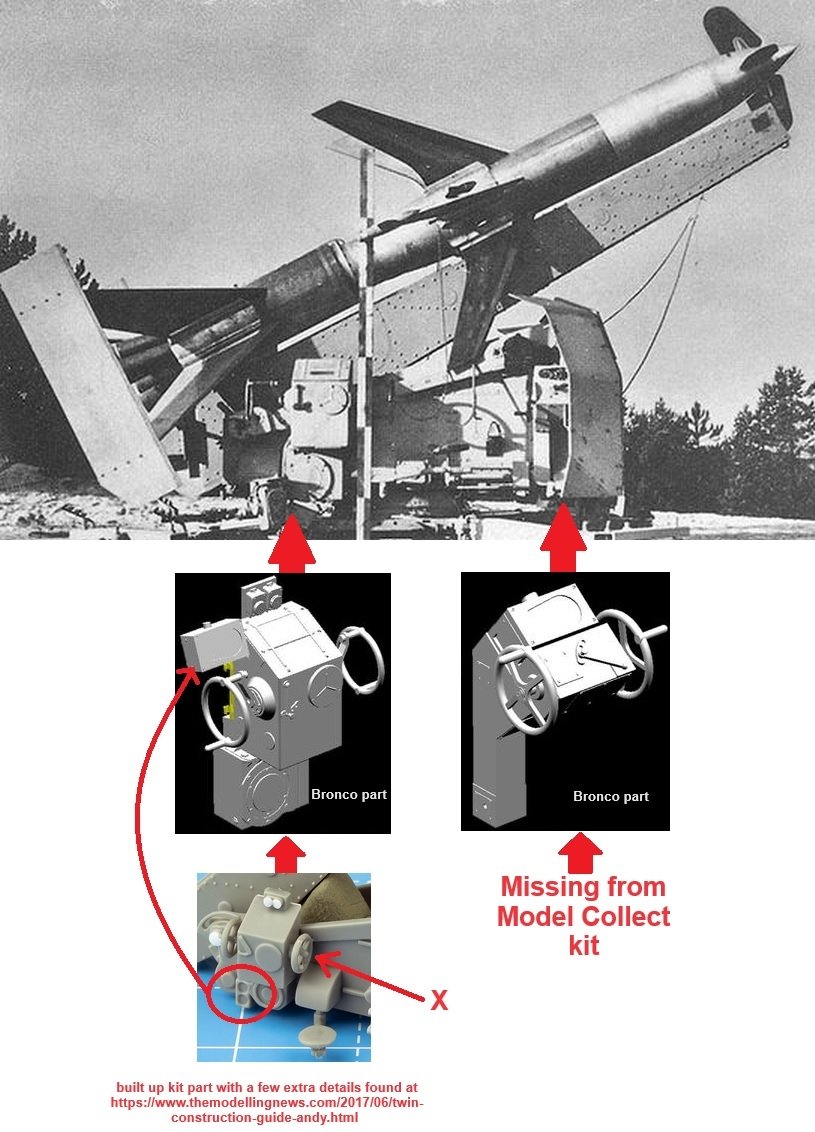

    As for the operators' stations, the fore one is completely absent, and only the aft one is supplied, and even at that, it is not very inaccurate.

  2. The underside of the cross mount is hollow, so it needs to be covered over. As for the blast deflector, I could not find a picture showing one installed, so I think this could be left off.
  3. Addendum 2: Al Magnus 2023/Oct/18
    Don't bother covering over the underside of the mount as it's completely inaccurate and the effort would be a waste of time.

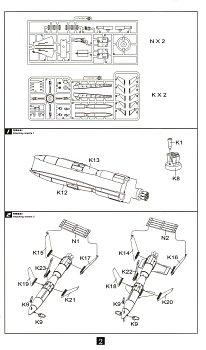

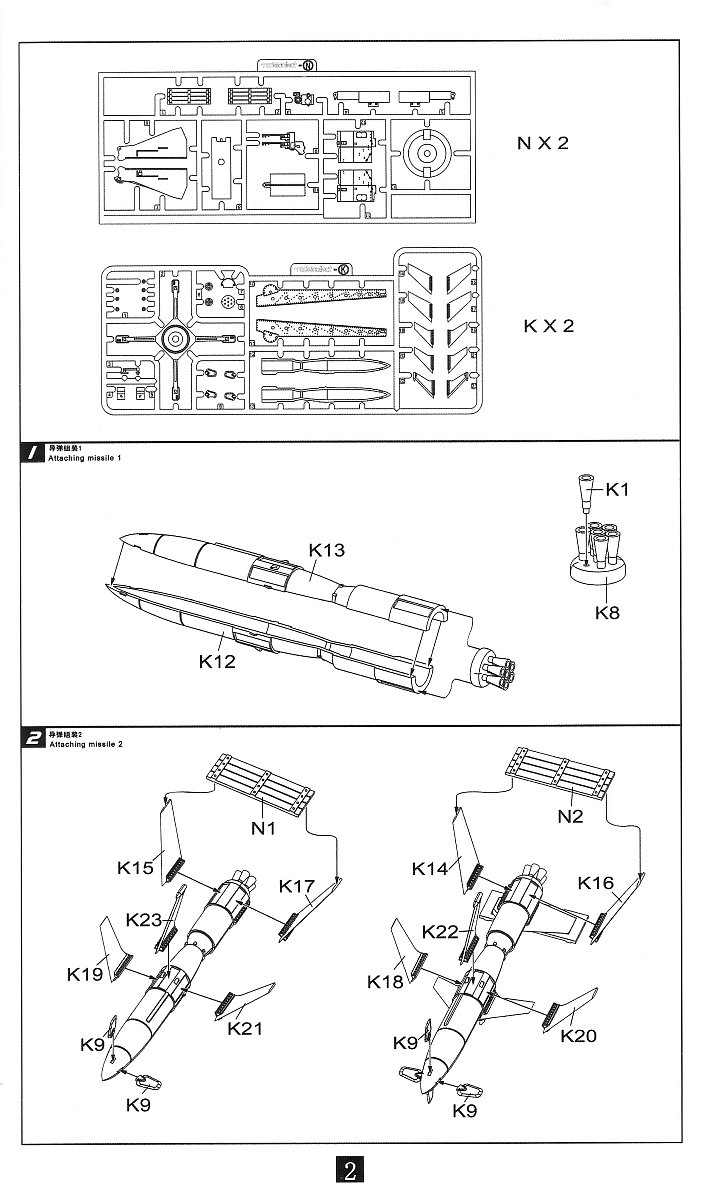

  4. Part N13 is not used and not marked as unused on the parts layout diagram on page two of the instructions. I think this part is used on Model Collect's Rheintochter mounted on the E50 tank chassis release (kit no. UA72031).
  5. Addendum 3: Al Magnus 2023/Oct/18
    So, seeing as the mount is completely inaccurate, one could attach the upper mount to one of the supplied, but not used, circular bases (part N13) and posit that the missile is part of a static position. The operator stations would still need correcting though.

  6. Parts N1 & N2, which are side boards on the rear fins, are suspect. They look more like a fence gate and not anything like the ones seen in period photos, which appear to be more like solid plywood sheeting. Below left shows the side boards on the real missile, and below right shows the kit's representation. As you can see, they're not even close! That leaves the builder with the option of building new scratch built boards or, replacing them with braces between all four booster fins, as seen on surviving museum examples.

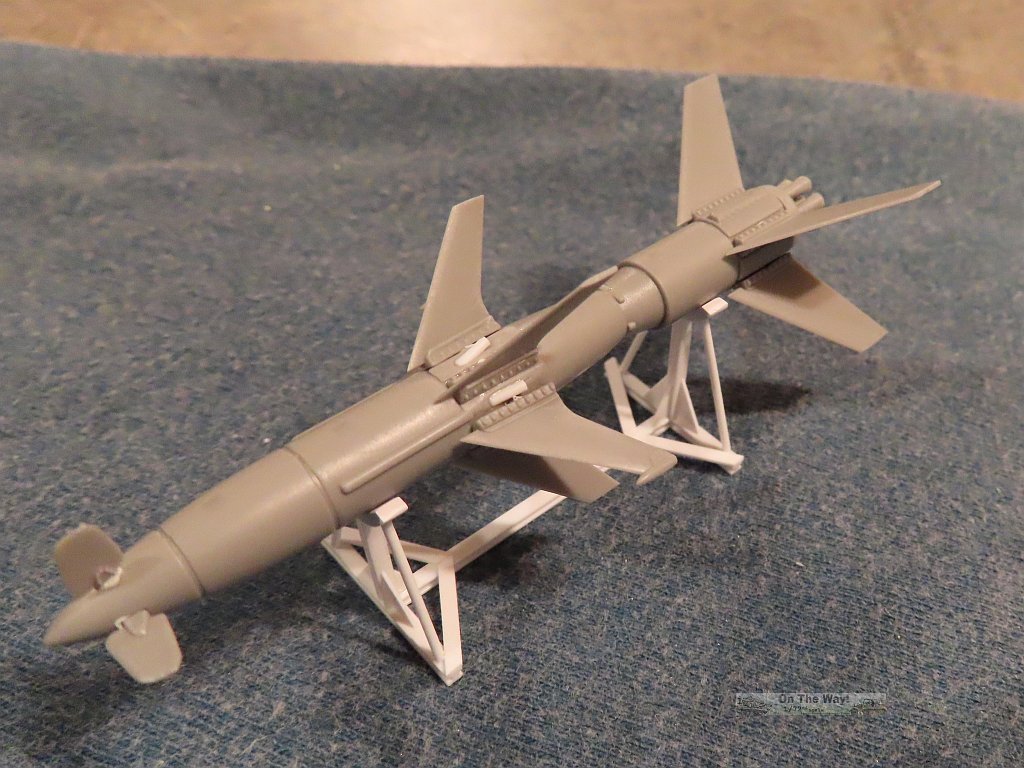

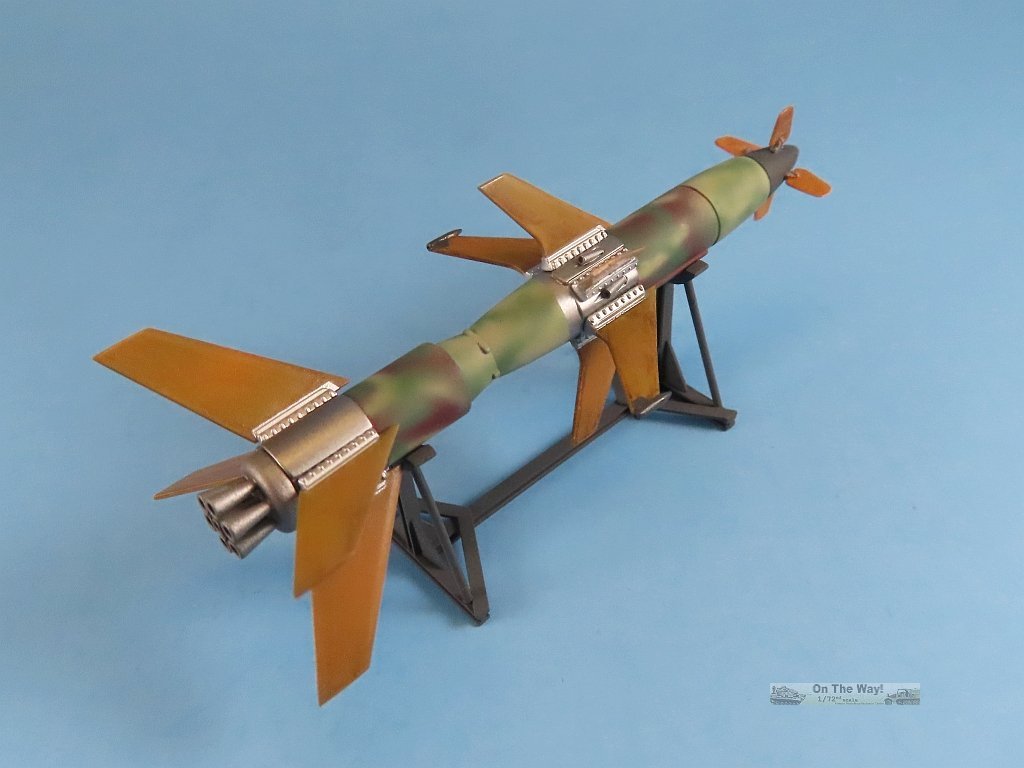

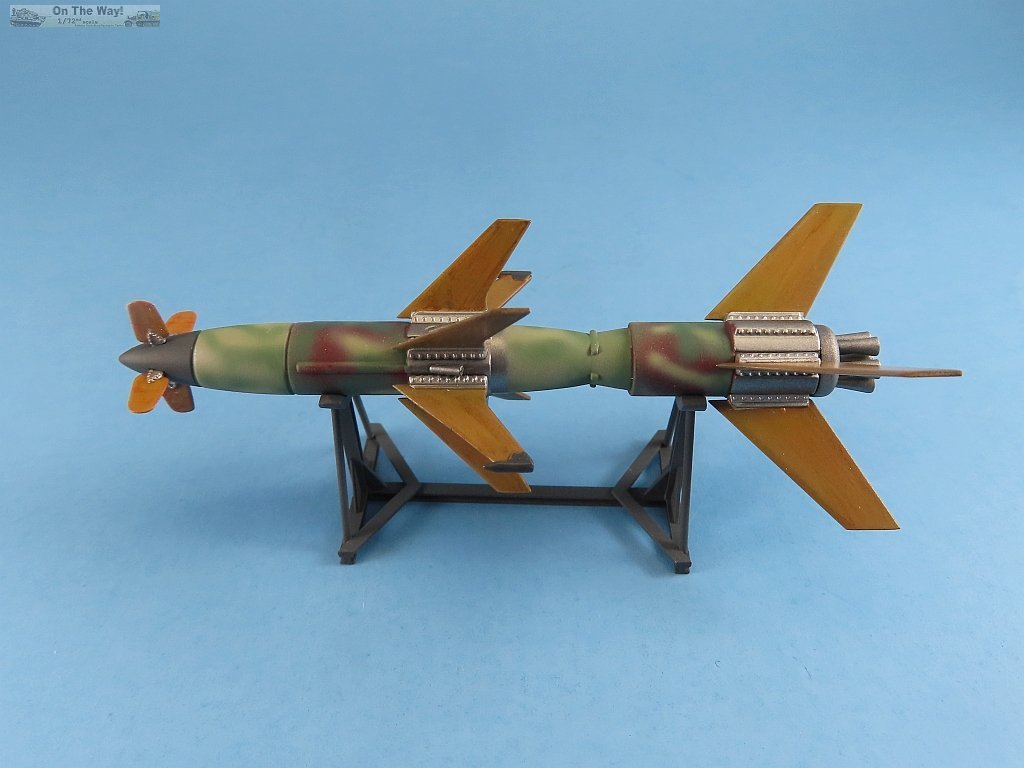

  7. All of the fins are exquisitely molded. Hopefully they will sit properly on the missile's body. If not, then it looks like there may be a lot of work filling gaps.
  8. The small rocket nozzles that ring the second stage body between the large fins are represented as indistinct nubs. These would be best removed and replaced with new nozzles.
  9. A pair of the mid fuselage fins have flares which will need their ends drilled out.

Dimensions:

My references have differing lengths for the Rheintochter, primarily due to measurements being taken between reference different points. I decided to use what looks to be an original German drawing found in [3]. This states a length of 5.785 metres (1/72 = 3.16in) from tip of the nose to end of the rocket nozzles. I couldn't read the diameter on the drawings and settled on a diameter of .510 metres (1/72 = 0.28in) given in the book's summary table. Since my model's parts are still on their sprues, I could only get a rough idea of the rocket's length by measuring its constituent parts - body (part K12/K13), end cap (part K8) and rocket nozzle (part K7) - and add them together. My dial caliper gives me 2.85in + 0.08in + 0.19in respectively, for a sum of 3.12in for the body, and 0.29in for diameter. A difference of -0.04in in length and +0.01 in diameter makes the rocket quite close to 1/72 in my opinion. I can only assume that once the fins added, and the launcher built, everything will remain close to 1/72 scale.

Conclusion

Overall, this looks to be an excellent kit and one worth its value. Only time will tell how well the parts fit together and if there will be problems with gaps between body and fins, which is a common issue with the many rocket kits I've built in the past. I think Model Collect missed a golden opportunity to make this kit a stand out, for if they had only put in a little extra effort and included an R3 missile (looking very much like a slightly lengthened second stage of the R1 rocket) in the set, the modeller would have had two interesting missiles to build, both using the common launcher. But on the plus side, you do have an extra rocket for making trades with.

Conclusion Addendum: Al Magnus 2023/Oct/18
The only accurate parts of this kit are the missile and its launch rail. The remainder of the launcher is pure fantasy, lacks detail and accuracy, and would be best tossed in the garbage bin.
