JK Resin

Resin sets from Czech Republic. Old product line sold to BP Resin, but JK Resin have now started a new product line.

Accessories (Old)
Kit Number Kit Name Comments Previews Reviews Articles
72001 Pz.Kpfw. IV Zimmerit Resin zimmerit parts for Revell kit.
72002 German 75mm Ammo (PzGr.39) 18 resin pieces: 8 complete and 10 empty shells. For Panzer IV, Stug. III and Stug. IV.
72003 StuH. III Ausf. G Late Resin conversion parts for Revell kit.
72004 Stug. III Ausf. G Late Resin conversion parts for Revell kit.
72005 Elefant Exterior Set Resin detail parts for Dragon kit.
72006 Ferdinand Exterior Set Resin detail parts for Dragon kit. Preview
72007 Pz.Kpfw. VI King Tiger Ammo Set 14 resin pieces: 7 complete and 7 empty shells.
72012 German Width Indicator Rods Resin and brass rod.
72013 German Lights Includes Bosch and Notek lights, and tail lights, four of each.
Accessories (New)
Kit Number Kit Name Comments Previews Reviews Articles
JKT72001 Mark I/II tracks for Masterbox kit


JKT72002 Mark I/II tracks with Grouser spuds for Masterbox kit
JKT72003 Pz.Kpfw.VI Kingtiger zimmerit for Revell kit
JKT72004 2cm KwK 30 & MG 34 barrel 1 resin & 1 brass copy of each barrel


JKT72005 2cm KwK 38 & MG 34 barrel 1 resin & 1 brass copy of each barrel
JKT72006 Mark I Hotchkiss 57 mm barrel 2 pieces


JKT72007 MG34 2 pieces


JKT72008 MG34 with tripod


JKT 72009 2cm flak gun empty cartridges 140 empty shells in resin, identical to those in set 72010


JKT 72010 2cm flak/gun ammo set
JKT72011 Mark I "Female" Vickers 7.7mm for Masterbox kit


JKT72012 Mark II "Female" Lewis 7.7mm
JKT72013 3,7cm flak/gun empty cartridges 140 pieces
JKT72014 3,7cm flak/gun ammo set 140 pieces
JKT72015 Mark IV "Male" Lewis & Hotchkiss for Emhar kit


JKT72016 Mark IV "Female" Lewis for Emhar kit



JKT72017

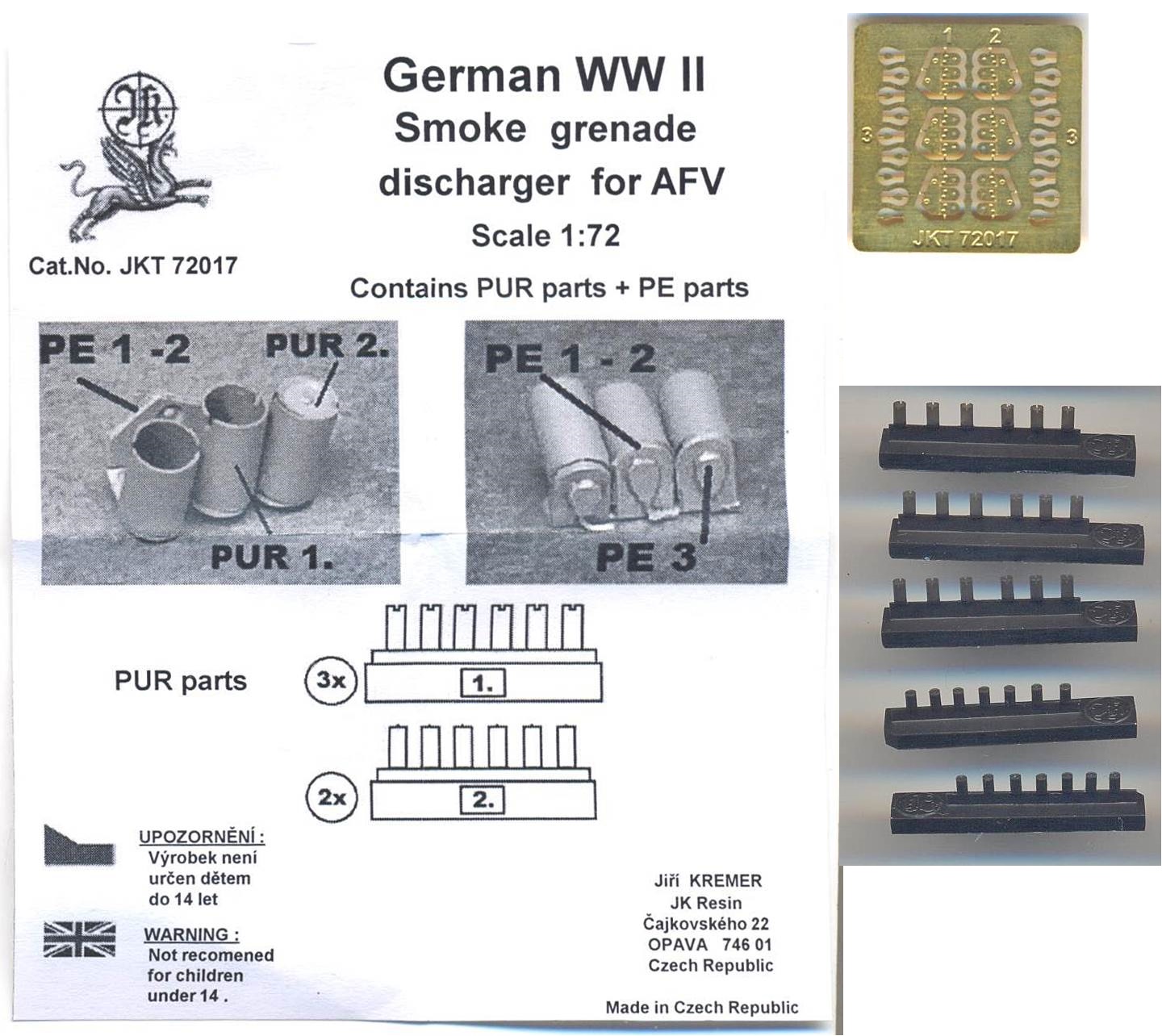

WW2 German smoke grenades for AFV Resin and PE to create 6 German smoke grenade launchers (with three launchers each) and 12 cartridges. All parts are extremely (!) finely rendered with incredibly thin walls for the hollow launchers, for instance. - Rob Haelterman
JKT72018 German WWII Licence Plates PE + decals
JKT72019
WW2 German width indicators 16 resin width indicators with PE details. For each vehicle you will need 3 plain indicators and one with a rear view mirror. Parts are very delicate and beautifully cast. - Rob Haelterman
JKT72020
Mark IV tracks + Grouser spuds (EM)
JKT72021 StuG III / StuH 42 - spare tracks
JKT72022 German WW II Damaged Tracks for Pz.III /StuG III Ausf.G /StuH 42
JKT72023 German WWII Fire Extinguisher 2 types
JKT72024 German WW II Notek Lights
JKT72025 German WW II Spare Tracks for Pz.III Ausf.J,M,N
JKT72026 German WW II Clamps for Tools
JKT72027 Return rollers for StuG III Ausf. G Late
JKT72028 Antiskid Plate "Diamond Pattern"
JKT72029 StuH 42 Saukopfblende - early for Dragon kit
JKT72030 StuH 42 with Saukopfblende - mid for Dragon kit
JKT72031 German WW II Antiskid plate - dot pattern 2 sheets
JKT72032 StuG III Ausf.G with Saukopfblende - mid for Dragon kit
JKT72033
8,8 cm KwK ammo boxes

JKT72034
7,5 cm ammo boxes
JKT72035
Luftwaffe Transportgestell TG1 with SC 500 bombs
JKT72036
Luftwaffe Ladewagen LWC500/IX with SC 250 bombs
JKT72037
Zimmerit No.1

JKT72038 Zimmerit No.2

JKT72039 German WWII Luftwaffe SC50 bomb crates with SC50 bombs
JKT72040 German WWII Luftwaffe SC250 bomb crates with SC250 bombs
JKT72041 German WWII Luftwaffe SC500 bomb crates with SC500 bombs
JKT72042 Luftwaffe Ammo Boxes for MG-FF, MG151, MG131, MK103, El.Az.
JKT72044 Brummbar Mid Zimmerit For Dragon kit
JKT72045 Jagdpanzer IV L/48 Early/Mid Zimmerit For Dragon kit
JKT72046 Jagdpanzer IV / L48 Late Zimmerit For Dragon kit
JKT72047 3,7cm Pak 36 ammo 162 pieces Preview
JKT72048 3,7cm Pak 36 ammo set   Preview
JKT72049 German WWII Grenade Boxes + Stielhandgr. 24
JKT72050 German WWII Minen Set
JKT72051 German WWII Stielhandgranate 24 + Geb. Ladung
JKT72052 Pz.Kpfw.V Ausf.H zimmerit for Revell kit
JKT72053 Pz.Kpfw.V Ausf.H schurzen zimmerit for Revell kit
JKT 72054 Flakpanzer IV Wirbelwind zimmerit for MACO/Revell kits

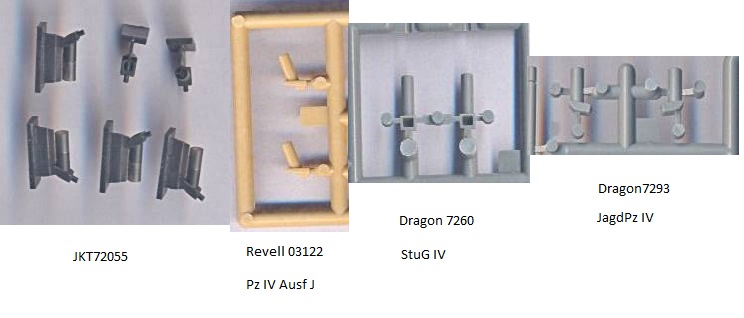

JKT 72055 Pz.Kpfw.IV & Jagdpanzer IV late exhaust In this set, JK Resin gives us 6 Flammentöter, i.e. the late style of individual exhaust on the Panzer IV and its derivatives (like the StuG IV and Jagdpanzer IV).
This is enough to equip 3 vehicles.

Dimensions
According to PzTracts 4-3, there were are least two different sized Flammentöter: one tall and narrow and one short and wide. The scale drawings In PzTracts 4-3 only show (what I believe is) the tall version and scale out at: Length: 571 mm - Diameter: 147mm

While PzTracts often gives separate drawings that show details of a tank, this is not offered for the Flammentöter, and, given their position, measuring their length accurately on the scale drawings is not that easy. Neither are the following kit parts easy to measure, but I gave it a try
JKT72055: Length: 450mm - Diameter: 164mm
Revell 03122 PzIV Ausf J: Length: 348 mm - Diameter: 137mm
Dragon 7260 StuG IV Late: Length: 503mm - Diameter: 148.3mm
Dragon 7293 JagdPz IV L/70 late: Length: 448mm - Diameter: 162mm

It is remarkable that two very similar Dragon kits have different parts for the Flammentöter, but I believe this actually captures the difference between both versions rather well, even if I don’t have measurements of the short/fat version.
Dimension-wise the JK parts are very close to the Dragon Jagdpanzer parts and would thus suit the short/fat version.
The Revell parts are both too short and too narrow to represent any variant.
While Revell’s parts are just solid cylinders, the Dragon parts are hollow and have the internal fluting. The JK parts are also hollow with internal detail, but are infinitely more delicate than the Dragon parts.
While the JK and Revell parts are correctly angled outwards (at about 30°), the Dragon parts seem to be molded almost vertically.

Conclusion: while the Dragon parts are acceptable, the JK Resin parts are an improvement. In case of the Revell kit, they are almost a must. - R. Haelterman

JKT 72056

Straps / belts for boxes, packs, tents, tarps
JKT 72057

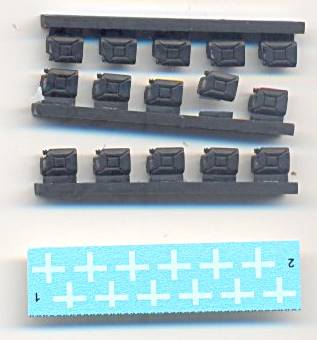

WW2 German 20 ltr. jerrycan

15 resin German jerrycans. Very delicately cast with fine detail. Probably the first jerrycans in 1/72 ever to feature three open and separate handles. Comes with a small decal sheet for 6 two-sided white crosses (indicating that the can held water).- Rob Haelterman


JKT 72058
WW2 German 20 ltr. jerrycans holders / racks
JKT 72059 Pz.Kpfw.VI Kingtiger zimmerit For Flyhawk kit

Decals
Kit Number Kit Name Comments Previews Reviews Articles
JKT72043 German WWII Flak 20mm/3.7cm decal set

Back to Manufacturers Page Back to Home Page
Kit list last updated: 02 November 2021
